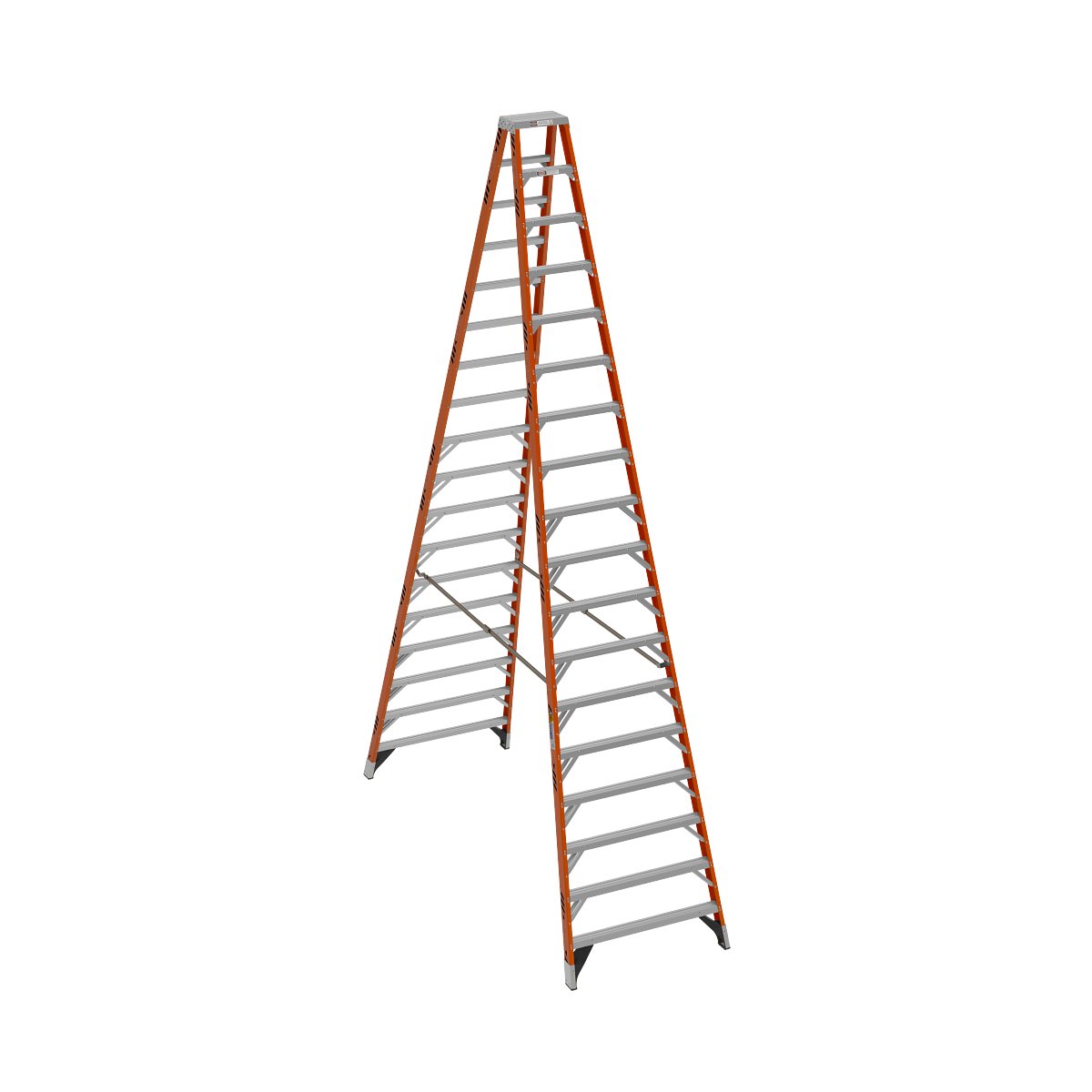

18ft Type IA Fiberglass Twin Ladder T7418
Style:Â Twin Step Ladder
Size:Â 18ft
Type:Â Type IA Duty Rating
Category: Step Ladders
Description
The T7418 Fiberglass 18-foot Twin Stepladder features a duty rating of 300 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 series ladders have heavy gauge aluminum tops and feature heavy-duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK® Violator stripes on the rails make the ladder more visible and the EDGE® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.
Features
- Heavy gauge aluminum extruded top with thick side plates
- Back-up aluminum plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
- Slip-resistant Traction-Tred® steps are double riveted and knee-braced
- Extra heavy-duty internal aluminum spreaders
- Rubber step bumpers to resist damage
- EDGE® bracing system helps to decrease damage to rail
- GLAS*MARK® Violator stripes on rails allow the ladder to be more visible
- Aluminum external rail shield helps protect against abrasion damage
- Shoe pads riveted to the EDGE® structure
- Every rivet backed up by metal, metal plates, or washer to protect rails
- Design for one or two-person jobs
- Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Specifications:
Details
| Style | Twin Step Ladder |
| Size | 18ft |
| Type | Type IA Duty Rating |
| Load Capacity (lb) | 300 lb |
| Material | Fiberglass |
| Certifications | CSA Certified,OSHA Compliant,ANSI A14.2-2007 |
| Werner Benefit | Heavy gauge aluminum extruded top with thick side plates |
| Unique Features | Works Around Electricity |
| Color of Ladder Rail | Orange |
| Color of Ladder Top | Aluminum |
| Bracing Type | EDGE |
| Edge Bracing | Yes |
| Foot Design | Metal with Rubber Pad |
| Front Flange Dimension (in) | 1.18 |
| Front Rails Dimension (in) | 3.125 |
| Max. Load | 300lb |
| User or Factory Installed | User |
| Number of Tool Holes in Ladder Top | 1 |
| Number of Top Features | 1 |
| Country of Origin | USA |
| UPC | 051751033199 |
Dimensions
| Average Reach Height Step Ladder (ft) | 22ft |
| Highest Standing Level Step Ladder (ft) | 15ft 4in |
| Approx. Product Length (in) | 216 |
| Approx. Product Width (in) | 46 |
| Approx. Product Height (in) | 9 |
| Approx. Product Depth (in) | 7 |
| Approx. Product Weight (lb) | 126 |
| Approx. Shipping Length (in) | 216 |
| Approx. Shipping Width (in) | 46 |
| Approx. Shipping Height (in) | 7 |
| Approx. Shipping Weight (lb) | 126 |
| Approx. Spread (in) | 136.13 |
| Approx. Open Length (in) | 216 |
| Approx. Closed Length (in) | 216 |
| Top Dimension (in) | 8.25in x 14.5in |
| Step / Rung Dimension (in) | 3 |
| Rear Rails Dimension (in) | 3.13 |
