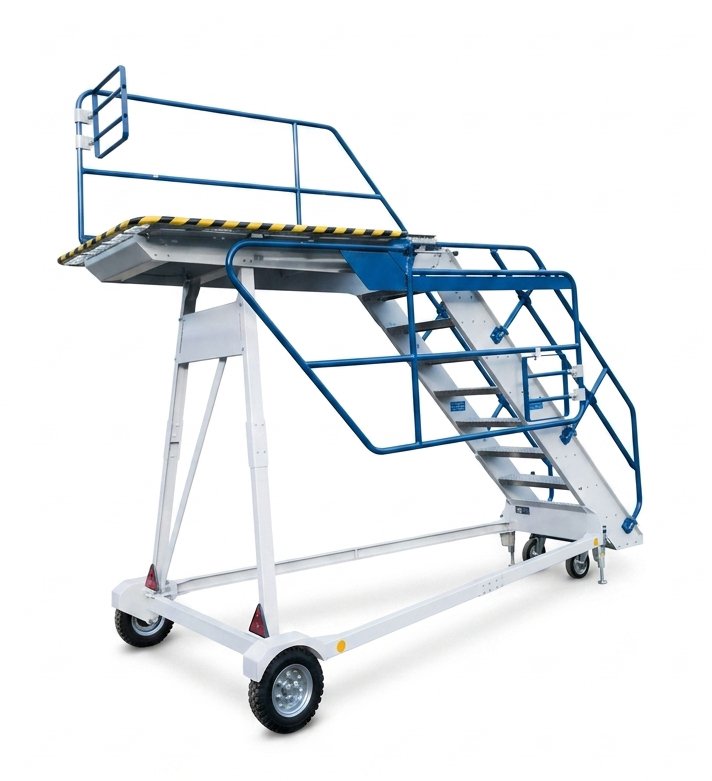

Aircraft Maintenance Stair/Platform
Our Aircraft Maintenance Stair is a mobile maintenance stair/platform designed to provide safe and convenient elevated access for aircraft maintenance, inspection, and servicing work. Its wheeled frame allows the unit to be positioned around the aircraft, while the elevated platform provides a stable working area for technicians.
Key safety and functional features include a two-leaf safety gate, swiveling platform railing, and fixed railings along the stairs to protect personnel while climbing and working at height. The platform also includes impact protection along its edge, helping prevent damage to the aircraft’s outer skin during use.
For mobility and stability, the maintenance stair is equipped with castors and fixed castors, together with a support/anti-rolling system that secures the unit in position during maintenance operations.
Overall, it is designed to combine safe access, mobility, stability, and aircraft protection for maintenance tasks at elevated working heights.
Technical Data
| Data | Unit | Value |
|---|---|---|
| Weight | kg | 385 |
| Total length | mm | 4,270 |
| Total height | mm | 2,600 |
| Total width | mm | 1,800 |
| Towing speed | km/h | — |
Stair Riser
| Data | Unit | Value |
|---|---|---|
| Number of steps* | — | 10 |
| Step height | mm | 250 |
| Rise | ° | 48 |
| Tread | mm | 750 |
| Max. persons per step | person | 1 |
| Stair load | people | 4 |
Platform
| Data | Unit | Value |
|---|---|---|
| Platform height from floor | mm | 2,500 |
| Working height | mm | 2,500–4,500 |
| Platform length | mm | 2,000 |
| Platform width | mm | 1,000 |
| Platform load** | kg | Max. 300 kg or 2 people |
