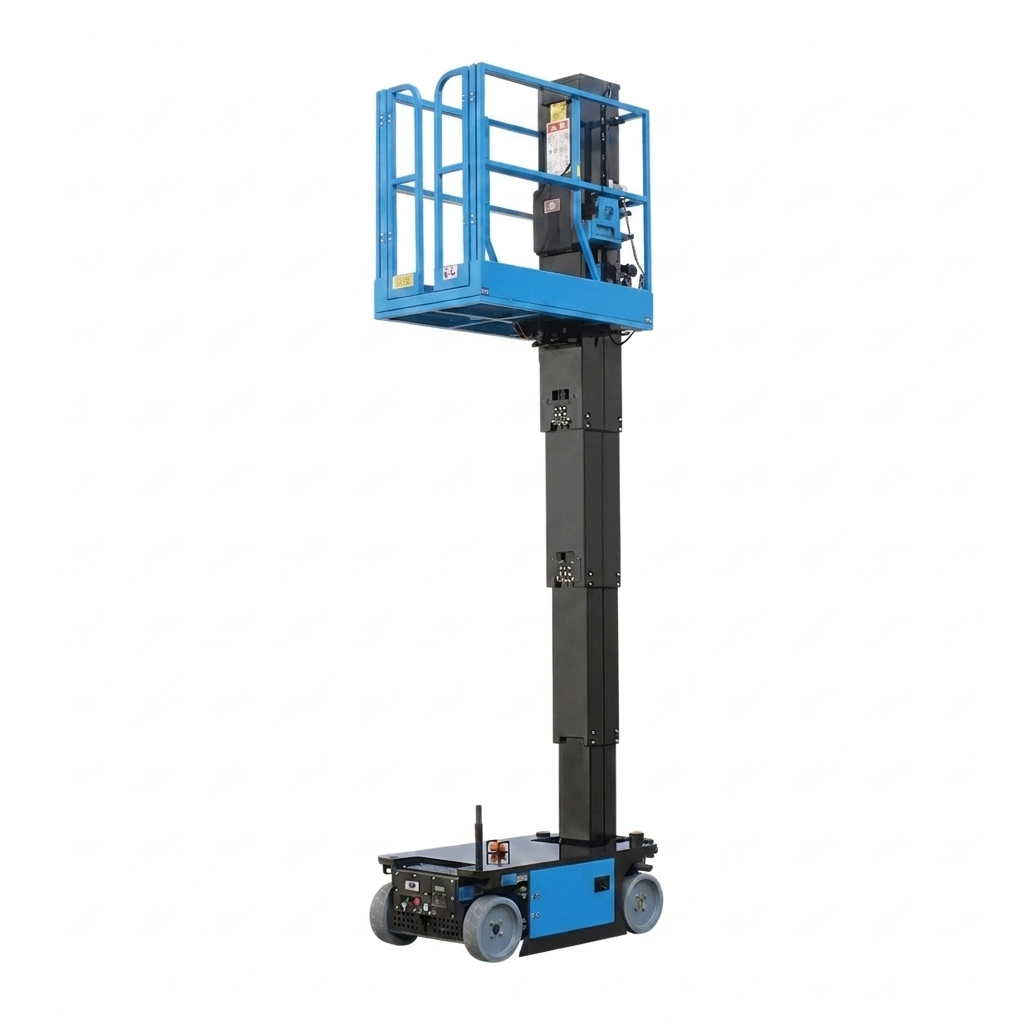

GI-AMWP6100 Vertical Mast Hydraulic Lifts
Operated vertical lifts are powered by electricity thanks to a reliable electric drive. These low-level accesses also offer ease of use and greater maneuverability, ensuring smooth operation in narrow aisles.
Thanks to their agility, compact size, and straight elevation, Our vertical mast lifts are extremely easy to maneuver in the tightest spaces, making them the perfect tool for MEWPs and MEWPs for internal access. The extension platform provides additional space.
FEATURES:
- Proportional controls
- Automatic pothole protection
- Driveable at full height
- Non-marking tire
- Automatic braking system
- Emergency lowering system
- Emergency stop button
- Cylinder seal valve
- On-board diagnostic system
Our GI-AMWP3.6-6100 self-propelled vertical boom lifts are compact and lightweight machines that increase productivity thanks to their ability to fit into narrow aisles and most passenger elevators. Additionally, these mobile mast lifts can be driven through doorways with the operator on board. The zero inside turning radius and full elevation capability also contribute to the increased productivity of these models.
| Maximum working height | 5.6 m |
| Maximum. Platform height | 3.6 m |
| Load capacity | 227 kg |
| Est. Platform capacity | 114kg |
| Total length | 1.36 m |
| Overall width | 0.76 m |
| Total height | 1.7 m |
| Platform size | 1.28×0.70 meters |
| Est. Platform length | 0.51 m |
| Wheel base | 1.04 m |
| Internal turning radius | 0m |
| Outside turning radius | 1.4 m |
| Travel speed (response) | 4 km/h |
| Travel speed (raised) | 1.1 km/h |
| Speed ​​up/down | 31/32 seconds |
| Surmountable slope | 0.25 |
| Driving the tires | Φ305×100mm |
| Drive motors | 2×24V DC/0.5kW |
| Lifting motor | 24V DC/1.2kW |
| Drums | 2×12 V/100 Ah |
| Battery charger | 24V/15A |
| Weight | 810 kg |
