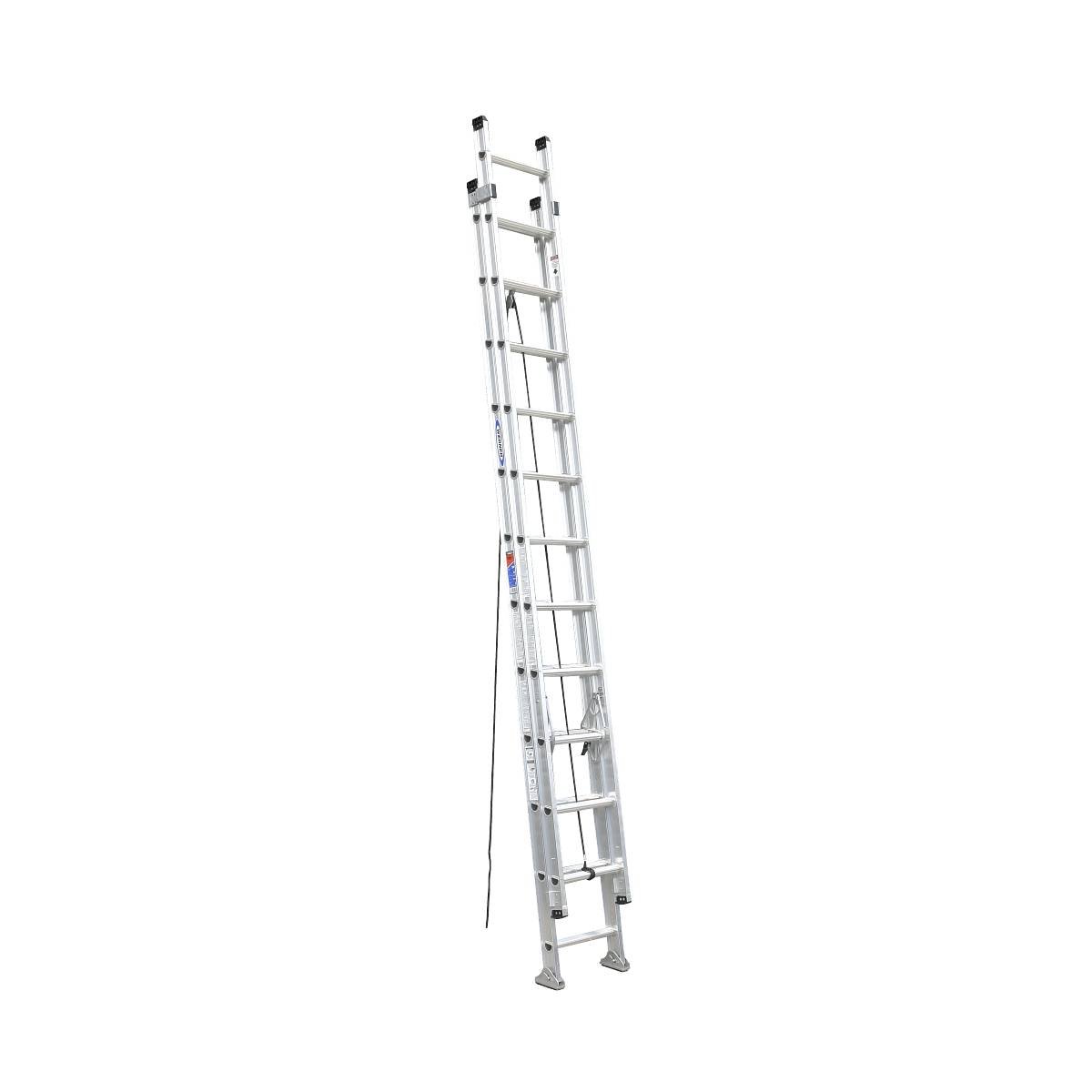

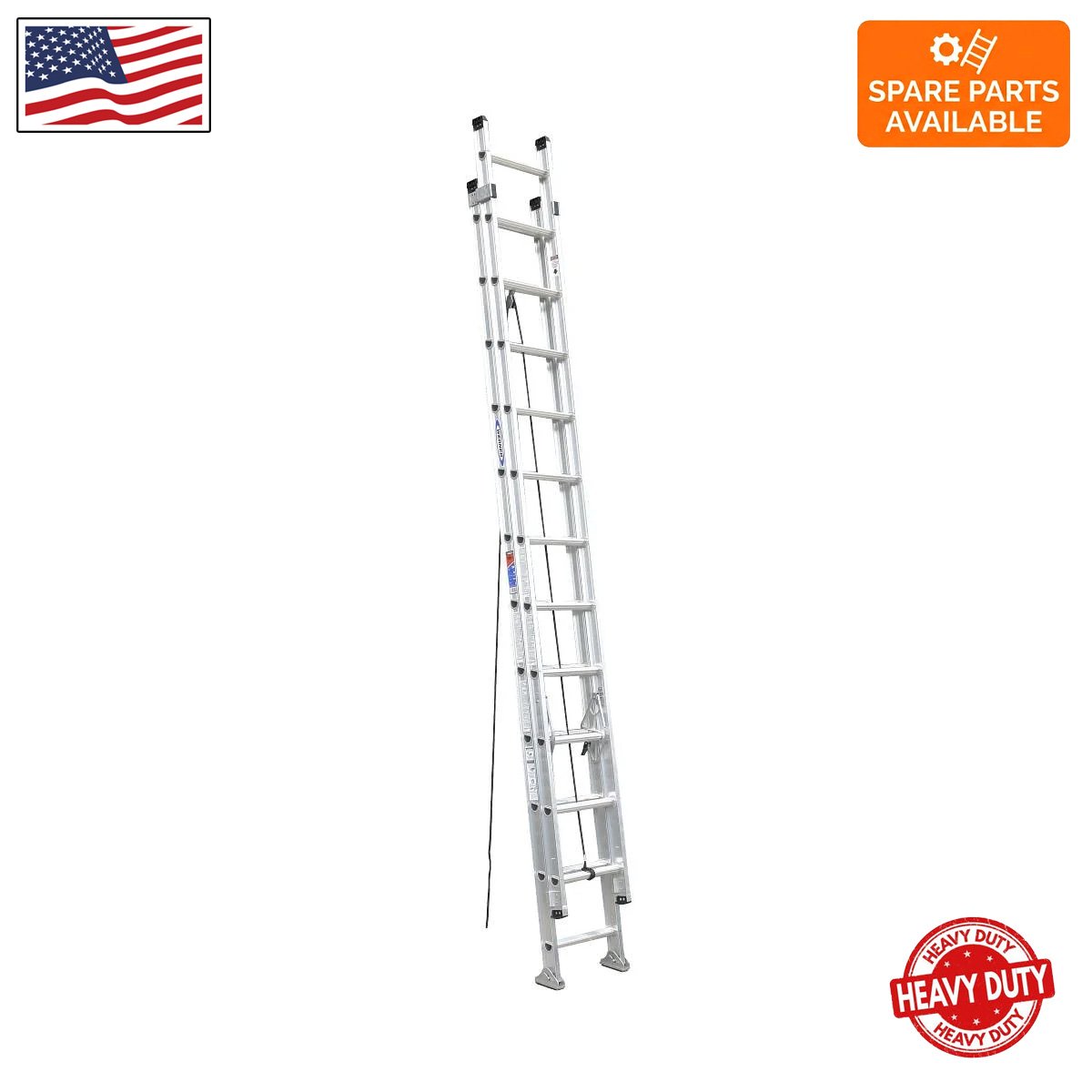

24ft Type IA Aluminum D-Rung Extension Ladder D1524-2
Style: Multi-Section
Size: 24ft
Type: Type IA Duty Rating
Description
The D6240-2 Fiberglass Two-Section 40-foot Extension Ladder has non-conductive rails making this ladder ideal for working near electricity. With a duty rating of 300 pounds, the ladder is durable and long lasting. The exclusive Alflo® rung joint means Twist-Proof® performance on the job. The Traction-Tred® D rungs are slip-resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.
Features:
- Exclusive Alflo® rung joint means Twist-Proof® performance
- 1.75-inch slip-resistant Traction-Tred® D-rungs
- Heavy-duty extruded rung locks are spring loaded to operate smoothly
- Base and fly separate easily for use as an extension or two single sections
- Smooth operating pulley design with an enclosed shape to protect the pulley
- Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section
- Extra heavy-duty I-beam rails
- Rugged spring loaded locks operate smoothly
- Rugged shoe rests flat or is held in spur position with SHU-LOK® feature
- Stacked rail design provides increased rung width on fly section
- Mar-resistant end caps
Specifications:
DETAILS:
| Style | Multi-Section |
| Size | 24ft |
| Type | Type IA Duty Rating |
| Load Capacity (lb) | 300 lb |
| Material | Aluminum |
| Certifications | ANSI A14.2-2007,OSHA Compliant |
| Werner Benefit | Exclusive Alflo® rung joint means Twist-Proof® performance |
| Color | Aluminum |
| Foot Design | Shu-Lok ®, and spur plate |
| Max. Load | 300lb |
| Number of Sections | 2 |
| Sections x Rungs | 2 x 12 |
| Country of Origin | USA |
| UPC | 051751012330 |
DIMENSIONS:
| Average Reach Height Extension Ladder (ft) | 23ft |
| Max. Open Extended Height (ft) | 20ft 11.25in |
| Approx. Product Length (in) | 144 |
| Approx. Product Width (in) | 18.125 |
| Approx. Product Height (in) | 6 |
| Approx. Product Weight (lb) | 45 |
| Approx. Shipping Length (in) | 144 |
| Approx. Shipping Width (in) | 18.4 |
| Approx. Shipping Height (in) | 6 |
| Approx. Shipping Weight (lb) | 45 |
| Approx. Product Length (ft) | 12 |
| Flange Dimension (in) | 1.125in |
| Fly Width | 18.125in |
| Rails Dimension | 3in |
| Rung Diameter | 1.75in |
| Rung Width | 1.75in |
